VC6GUN | Schneider Electric

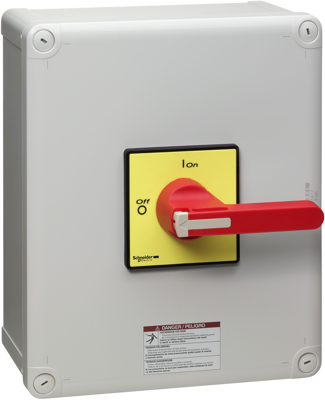

Emergency stop load-break switch, rotary actuator, 3 pole, 115 A, (W x H x D) 241 x 291 x 191 mm, door mounting, VC6GUN

Order No.: 04P8224
EAN: 3389119413152
MPN:
VC6GUN
VC6GUN Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
442.2873 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
442.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
442.2873 €

Emergency stop load-break switch, VC6GUN, Schneider Electric

The VC6GUN is a 3-pole TeSys Vario enclosed switch-disconnector for main and emergency stop switching in motor applications 60HP@600V. It includes a V6 Vario switch disconnector rated 115 A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red and yellow operator. It is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 291 mm
Degree of protection (IP) IP65
Assembly door mounting
Depth 191 mm
Width 241 mm
Permanent current 115 A
Product type emergency stop load-break switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
