VC3GUN | Schneider Electric
Load-break switch, rotary actuator, 3 pole, 45 A, (W x H x D) 164 x 193 x 132 mm, door mounting, VC3GUN
Unit Price (€ / pc.)
151.7607 € *
Standard delivery time from the manufacturer is: 2 Weeks
Load-break switch, VC3GUN, Schneider Electric

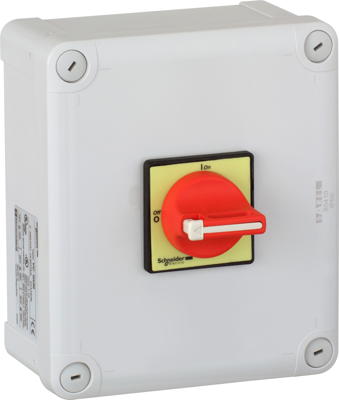

The VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector for main and emergency stop switching in motor applications 30HP@600V. It includes a V3 Vario switch disconnector rated 45 A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red and yellow operator. It is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Technical specifications
| Permanent current | 45 A | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP65 | |
| Depth | 132 mm | |
| Assembly | door mounting | |
| Width | 164 mm | |
| Height | 193 mm | |
| Product type | load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
