VBF6GEN | Schneider Electric

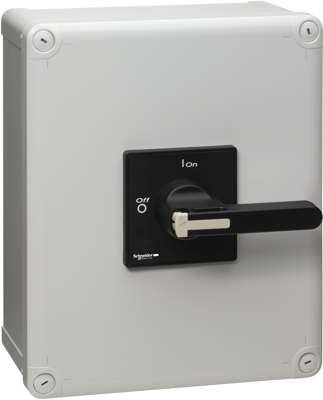

Disconnect switch, rotary actuator, 3 pole, 140 A, (W x H x D) 241 x 291 x 191 mm, VBF6GEN

Order No.: 04P8207
EAN: 3389119413121
MPN:
VBF6GEN
VBF6GEN Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
354.7747 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
354.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
354.7747 €

Disconnector, VBF6GEN, Schneider Electric

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 140A 690V, for main switching in motor applications up to 45kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black long rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V6 with 1 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 291 mm
Degree of protection (IP) IP65
Depth 191 mm
Width 241 mm
Permanent current 140 A
Product type disconnect switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
