VBDN12 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 12 A, (W x H) 60 x 60 mm, screw mounting, VBDN12

Order No.: 04P8188
EAN: 3389110759853
MPN:
VBDN12
VBDN12 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
22.5743 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.5743 €

Switch disconnector, VBDN12, Schneider Electric

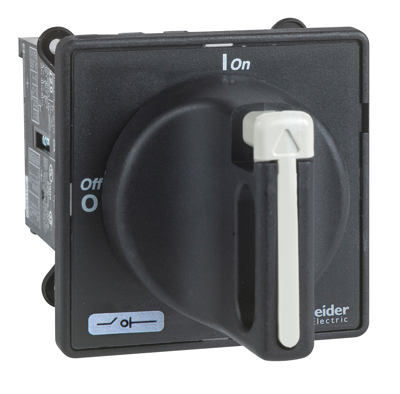

TeSys Vario switch disconnector for door mounting, 3 poles, 12 A/690 V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 60 mm
Degree of protection (IP) IP65
Assembly screw mounting
Width 60 mm
Permanent current 12 A
Product type load-break switch
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
