Main switch, rotary actuator, 3 pole, 40 A, (W x H) 60 x 74 mm, screw mounting, VBD2
Unit Price (€ / pc.)
50.8487 € *
Standard delivery time from the manufacturer is: 1 Week

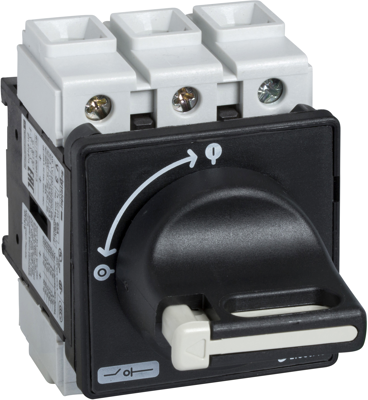

Main switch, VBD2, Schneider Electric
TeSys Vario switch disconnector for door mounting, 3 poles, 40 A/690 V, for motor switching applications up to 15kW@400V AC-23. Complete unit composed of a switch body V2, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Height | 74 mm | |
| Degree of protection (IP) | IP65 | |
| Assembly | screw mounting | |
| Width | 60 mm | |
| Permanent current | 40 A | |
| Product type | main switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
