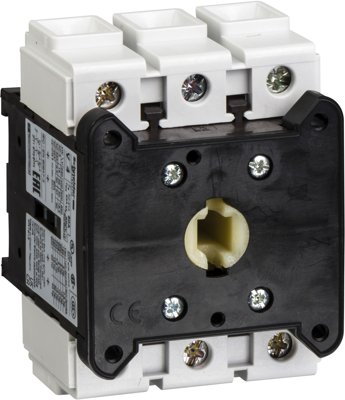

Load-break switch, rotary actuator, 3 pole, 175 A, (W x H x D) 90 x 125 x 90 mm, V6
Unit Price (€ / pc.)
187.6392 € *
Standard delivery time from the manufacturer is: 1 Week
Switch disconnector, V6, Schneider Electric
TeSys Vario switch body, 3 poles, 175 A/690 V, for motor switching applications up to 45kW@400V AC-23. It can be used to switch DC circuits until 250 V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 90 mm | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 | |
| Width | 90 mm | |
| Permanent current | 175 A | |
| Actuator | rotary actuator | |
| Height | 125 mm | |
| Product type | load-break switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
