V5 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 125 A, (W x H x D) 90 x 125 x 90 mm, V5

Order No.: 04P8181
EAN: 3389110551730
MPN:
V5
V5 Schneider Electric Circuit Breakers

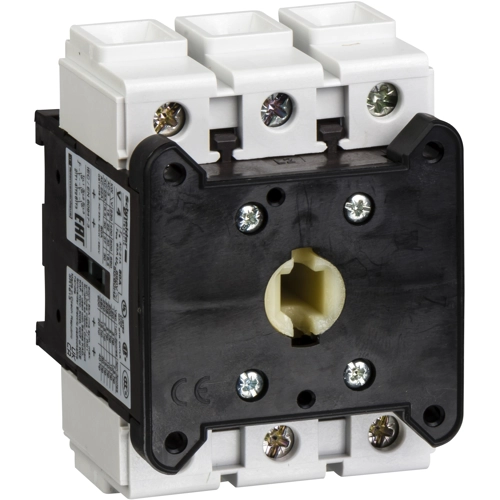

Image may differ
Unit Price (€ / pc.)
99.8529 € *
Available in 3 Days: 39 pcs. - if ordered today
Total Price:
99.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
99.8529 €

Switch disconnector, V5, Schneider Electric

TeSys Vario switch body, 3 poles, 125 A/690 V, for motor switching applications up to 37kW@400V AC-23. It can be used to switch DC circuits until 250 V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Width 90 mm
Product type load-break switch
Degree of protection (IP) IP20
Pin number 3 pole
Height 125 mm
Depth 90 mm
Actuator rotary actuator
Permanent current 125 A
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
