V2 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 40 A, (W x H x D) 55 x 74 x 60 mm, V2

Order No.: 04P8176
EAN: 4099889295191
MPN:
V2
V2 Schneider Electric Circuit Breakers

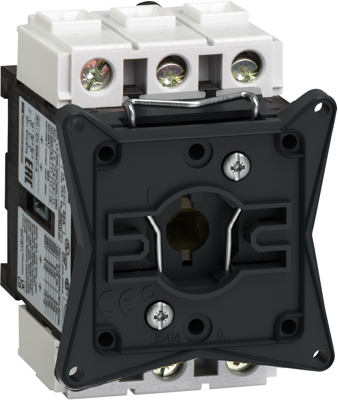

Image may differ
Unit Price (€ / pc.)
36.8186 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
36.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.8186 €

Switch disconnector, V2, Schneider Electric

TeSys Vario switch body, 3 poles, 40 A/690 V, for motor switching applications up to 15kW@400V AC-23. It can be used to switch DC circuits until 250 V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Permanent current 40 A
Actuator rotary actuator
Degree of protection (IP) IP20
Depth 60 mm
Width 55 mm
Height 74 mm
Product type load-break switch
Pin number 3 pole
Logistics
Country of origin CZ
Customs tariff number 85362010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
