V02 | Schneider Electric

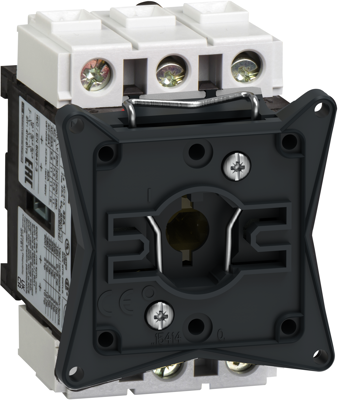

Load-break switch, rotary actuator, 3 pole, 12 A, (W x H x D) 55 x 74 x 60 mm, screw mounting, V02

Order No.: 04P8173
EAN: 3389110448849
MPN:
V02
V02 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
13.209 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.209 €

Switch disconnector, V02, Schneider Electric

TeSys Vario switch body, 3 poles, 12 A/690 V, for motor switching applications up to 4kW@400V AC-23. It can be used to switch DC circuits until 250 V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Pin number 3 pole
Actuator rotary actuator
Height 74 mm
Degree of protection (IP) IP20
Assembly screw mounting
Depth 60 mm
Width 55 mm
Permanent current 12 A
Product type load-break switch
Logistics
Property Value
Customs tariff number 85362010
Country of origin CZ
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
