V0 | Schneider Electric

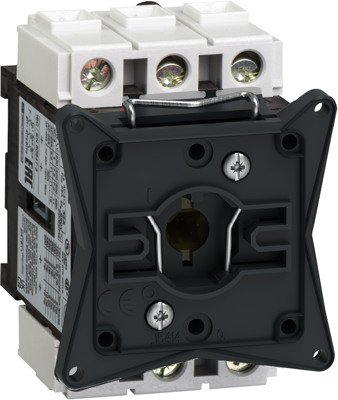

Load-break switch, rotary actuator, 3 pole, 25 A, (W x H x D) 55 x 74 x 60 mm, screw mounting, V0
Unit Price (€ / pc.)
20.8607 € *
Available in 3 Days: 227 pcs. - if ordered today
Switch disconnector, V0, Schneider Electric
TeSys Vario switch body, 3 poles, 25 A/690 V, for motor switching applications up to 7.5kW@400V AC-23. It can be used to switch DC circuits until 250 V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 4 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 60 mm | |
| Height | 74 mm | |
| Assembly | screw mounting | |
| Width | 55 mm | |
| Permanent current | 25 A | |
| Degree of protection (IP) | IP20 | |
| Actuator | rotary actuator | |
| Product type | load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
