QO115GFI | Schneider Electric
Circuit breaker, toggle actuator, 1 pole, 15 A, (W x H x D) 19 x 105 x 74 mm, screw mounting, QO115GFI
Order No.: 04P5558
EAN: 0785901255062
MPN:
QO115GFI
Unit Price (€ / pc.)
460.6133 € *
Standard delivery time from the manufacturer is: 4 Weeks

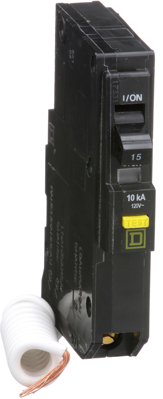

Circuit breaker, QO115GFI, Schneider Electric
This circuit breaker has an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. This 1 pole QO circuit breaker is rated at 15 A at 120 VAC. This unit provides 10 kA breaking capacity and plug in mounting. This product includes a 6 mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Actuator | toggle actuator | |
| Height | 105 mm | |
| Assembly | screw mounting | |
| Depth | 74 mm | |
| Width | 19 mm | |
| Permanent current | 15 A | |
| Product type | circuit breaker |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
