PKL36100 | Schneider Electric

Circuit breaker, toggle actuator, 3 pole, 1000 A, 750 V, (W x H x D) 210.06 x 410.46 x 204.47 mm, PKL36100

Order No.: 04P5379
EAN: 4099889295016
MPN:
PKL36100
Series: PowerPact
PKL36100 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
5,796.7994 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5,796.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5,796.7994 €

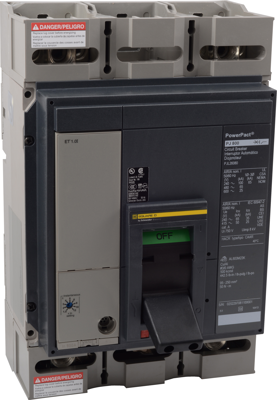

Circuit breaker, PKL36100, Schneider Electric

This circuit breaker is designed to protect electrical systems from damage caused by overloads and short circuits. This circuit breaker has an electronic trip unit, ET 1.0I. This unit has lugs on both the line and load sides. This PowerPacT P, 1000 A, 3 pole, circuit breaker has an interrupting rating of 50 kA at 600 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Technical specifications
Permanent current 1000 A
Actuator toggle actuator
Degree of protection (IP) IP20
Depth 204.47 mm
Width 210.06 mm
Height 410.46 mm
Product type circuit breaker
Pin number 3 pole
Isolation voltage 750 V
Logistics
Country of origin IT
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
