NJLL36000S25 | Schneider Electric
Load-break switch, toggle actuator, 3 pole, 250 A, 750 V, (W x H x D) 104 x 191 x 86 mm, DIN rail, NJLL36000S25
Unit Price (€ / pc.)
751.9253 € *
Standard delivery time from the manufacturer is: 3 Weeks

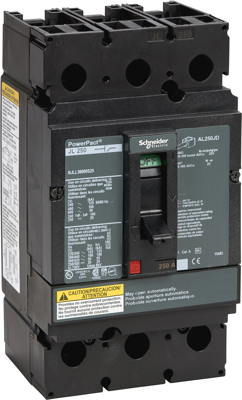

Circuit breaker, NJLL36000S25, Schneider Electric
Automatic switch, PowerPacT multistandard, J-Frame, 250 A, 125 kA.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 750 V | |
| Depth | 86 mm | |
| Height | 191 mm | |
| Assembly | DIN rail | |
| Width | 104 mm | |
| Permanent current | 250 A | |
| Degree of protection (IP) | IP40 | |
| Actuator | toggle actuator | |
| Product type | load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, octamethylcyclotetrasiloxane |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
