MGN02363 | Schneider Electric

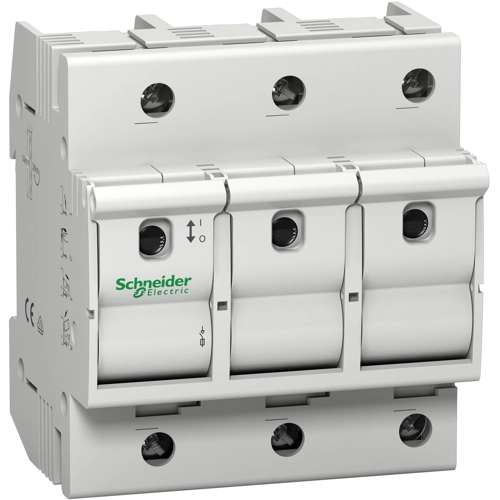

Fuse load-break switch, 3 pole, 63 A, 400 V, (W x H x D) 81 x 88 x 68 mm, fixed mounting, MGN02363

Order No.: 03P8784
EAN: 4099889294446
MPN:
MGN02363
Series: Acti9
MGN02363 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
73.6134 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
73.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
73.6134 €

Fuse switch disconnector, MGN02363, Schneider Electric

This Acti9 D02 product is a low voltage plug-in fuse disconnector switch. It is a 3P device with 3 protected poles and rated current is 63 A. It is used for service sector and industrial applications. Electrical endurance goes up to 1500 cycles. Mechanical endurance goes up to 8500 cycles. The Ue rated operational voltage is 230 VAC or 400 VAC. The Ui rated insulation voltage is 400 VAC. It can be mounted on DIN rail for modular installation. The dimensions are (W) 81 mm x (H) 88 mm x (D) 68 mm. It has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. The operating temperature is -5°C to +40°C. The storage temperature is -25°C to +55°C. This product is compliant with IEC/EN 60947-3, IEC/EN 60947-1 and IEC/EN 60269-1 standards.

Technical specifications
Permanent current 63 A
Degree of protection (IP) IP20
Depth 68 mm
Assembly fixed mounting
Width 81 mm
Height 88 mm
Product type fuse load-break switch
Pin number 3 pole
Isolation voltage 400 V
Logistics
Country of origin SI
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
