LV848498 | Schneider Electric
Control and release unit, push actuator, 4 pole, (L x W x H) 300 x 493 x 300 mm, drawout, LV848498
NCNR (non cancelable / non returnable)
Control and release unit, LV848498, Schneider Electric

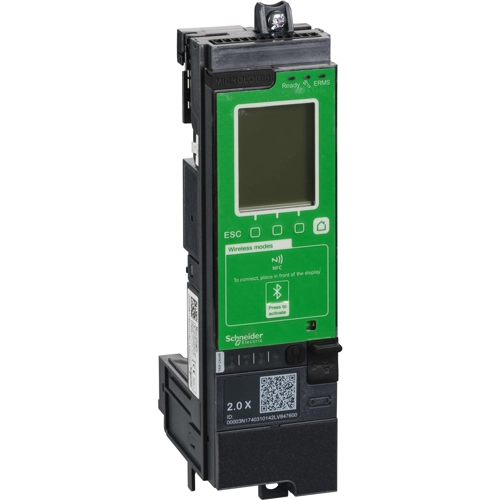

This Micrologic 2.0 X is an electronic control unit used on Masterpact MTZ2 and MTZ3 drawout circuit breakers. It is possible to customize Micrologic X control unit anytime with digital modules to add new protection, measurement or diagnosis functionalities. It provides also adjustable instantaneous protection against short-circuits. With its embedded backlight HMI, Micrologic 2.0 X allows the quick identification of alarm messages.
The information processed by the Micrologic 2.0 X may be displayed on the embedded backlight HMI, a smartphone through Bluetooth or NFC and a PC through the USB connection. The protections can be set by means of the embedded display, a smartphone via Bluetooth or with a PC running EcoStruxure Power Commission, and additionally via Ethernet and Modbus SL communication. Masterpact MTZ and Micrologic X are part of EcoStruxure architecture system.
| Filter | Property | Value |
|---|---|---|
| Product type | control and release unit | |
| Pin number | 4 pole | |
| Actuator | push actuator | |
| Assembly | drawout | |
| Width | 493 mm | |
| Height | 300 mm | |
| Length | 300 mm |
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85363090 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
