LV848270 | Schneider Electric

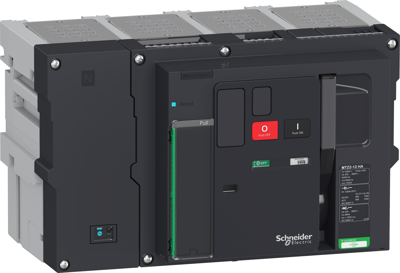

Basic switch, Push actuator, 4 pole, 1200 A, 1000 V, (W x H x D) 493 x 300 x 300 mm, Drawout, LV848270
Unit Price (€ / pc.)
5,362.4494 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5,362.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5,362.4494 €
Switch-disconnector, LV848270, Schneider Electric
Masterpact MTZ2 1200A HA Icm=145kA/690V 4P basic switch draout . Switch-disconnector Masterpact MTZ2 12 HA, 1250A, 4p drawout. Series: Masterpact - short designation of the device: MTZ2 12 HA - device application: distribution - network connection: AC - network frequency: 50/60 Hz.
Technical specifications
| Actuator | Push actuator | |
| Width | 493 mm | |
| Permanent current | 1200 A | |
| Height | 300 mm | |
| Isolation voltage | 1000 V | |
| Assembly | Drawout | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Depth | 300 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
