Circuit breaker, toggle actuator, 4 pole, 160 A, (W x H x D) 140 x 161 x 86 mm, fixed mounting, LV516353
Unit Price (€ / pc.)
560.0735 € *
Standard delivery time from the manufacturer is: 3 Weeks

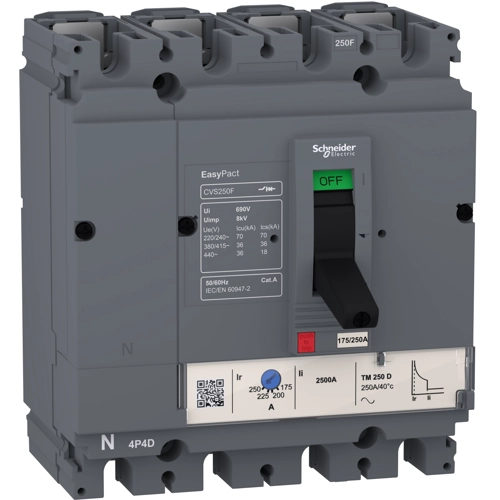

Circuit breaker, LV516353, Schneider Electric
EasyPact LV516353 is a 4 poles 4d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36 kA rms at 415V AC 50/60Hz. The operational voltage is 440V AC 50/60Hz. This product embeds a 160 A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. EasyPact LV516353 is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 140 mm | |
| Actuator | toggle actuator | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP40 | |
| Assembly | fixed mounting | |
| Product type | circuit breaker | |
| Height | 161 mm | |
| Permanent current | 160 A | |
| Depth | 86 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
