LS1D323 | Schneider Electric

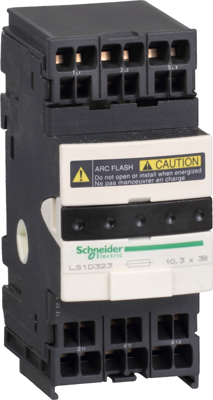

Fuse load-break switch, toggle actuator, 3 pole, 32 A, (W x H x D) 45 x 89 x 68.3 mm, LS1D323
No longer available from manufacturer
Unit Price (€ / pc.)
57.7983 € *
Standard delivery time from the manufacturer is: 1 Week
Fuse disconnector, LS1D323, Schneider Electric
TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 25 A/690 V. To be used with 10x38mm fuse links up to 25 A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35 mm DIN rail or screw fixing on panel, connection by spring terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries, auxiliary signaling contact block, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | fuse load-break switch | |
| Pin number | 3 pole | |
| Actuator | toggle actuator | |
| Width | 45 mm | |
| Height | 89 mm | |
| Depth | 68.3 mm | |
| Permanent current | 32 A | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
