K1C003QCH | Schneider Electric

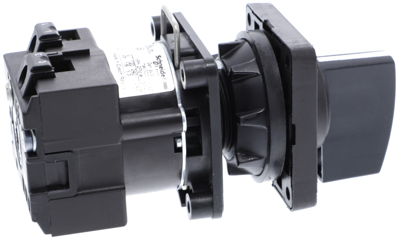

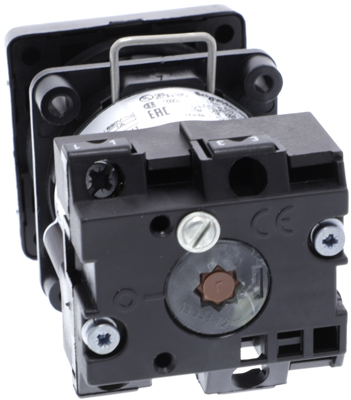

Step switch, rotary actuator, 1 pole, 12 A, 690 V, (W x H x D) 45 x 50 x 59 mm, front mounting, K1C003QCH
Unit Price (€ / pc.)
29.4882 € *
Standard delivery time from the manufacturer is: 1 Week
Tap changer, K1C003QCH, Schneider Electric

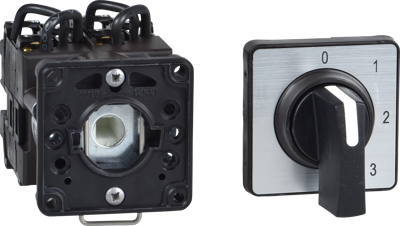

This K1 single-pole stepping switch is ideal for direct control of simple machines, has a rated voltage of 690V AC and a rated current of 12 A. It has a square shape and a metallic legend with black marking. It is IP65 and installs in a 22mm hole. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | step switch | |
| Isolation voltage | 690 V | |
| Depth | 59 mm | |
| Height | 50 mm | |
| Permanent current | 12 A | |
| Degree of protection (IP) | IP65 | |
| Actuator | rotary actuator | |
| Assembly | front mounting | |
| Width | 45 mm | |
| Pin number | 1 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
