K1B001UCH | Schneider Electric

Changeover switch, rotary actuator, 1 pole, 12 A, 690 V, (W x H x D) 45 x 50 x 49 mm, front mounting, K1B001UCH

Order No.: 02P8988
EAN: 3389110978513
MPN:
K1B001UCH
Series: Harmony K
K1B001UCH Schneider Electric Circuit Breakers

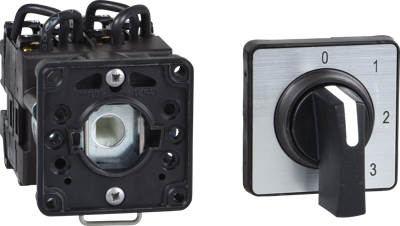

Image may differ
Unit Price (€ / pc.)
20.825 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
20.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.825 €

Toggle switch, K1B001UCH, Schneider Electric

This Harmony K1 complete cam switch/selector switch has 1 pole (1P). It also has a rating of 12 A, a screw clamp mounting mode and a metallic color with black marking. It has "2 - 0 - 1" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Technical specifications
Filter Property Value
Depth 49 mm
Degree of protection (IP) IP65
Assembly front mounting
Isolation voltage 690 V
Pin number 1 pole
Width 45 mm
Height 50 mm
Permanent current 12 A
Actuator rotary actuator
Product type changeover switch
Logistics
Property Value
Country of origin CZ
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
