JDL36250U31X | Schneider Electric

Circuit breaker, toggle actuator, 3 pole, 250 A, 750 V, (W x H x D) 104 x 191 x 86 mm, JDL36250U31X

Order No.: 02P8929
EAN: 4099889279733
MPN:
JDL36250U31X
JDL36250U31X Schneider Electric Circuit Breakers

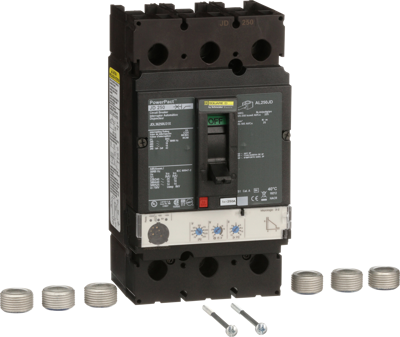

Image may differ
Unit Price (€ / pc.)
3,857.1946 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3,857.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3,857.1946 €

Circuit breaker, JDL36250U31X, Schneider Electric

The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 65 kA@240 VAC and has a rated current of 250 A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With an electronictrip unit it has an LI function and an ABC Phase Connectiion. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 40 °C. This product comes with an 18 month warranty.

Technical specifications
Filter Property Value
Height 191 mm
Pin number 3 pole
Permanent current 250 A
Width 104 mm
Isolation voltage 750 V
Product type circuit breaker
Degree of protection (IP) IP20
Actuator toggle actuator
Depth 86 mm
Logistics
Property Value
Country of origin US
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Sustainable Yes
