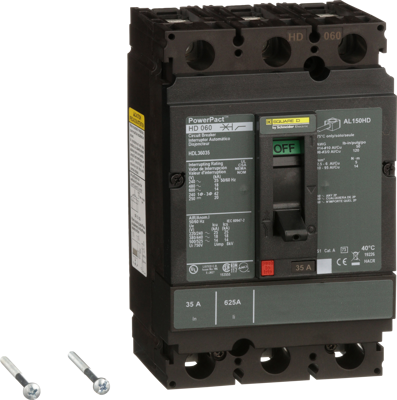

HDL36035 | Schneider Electric

Compact circuit breaker, toggle actuator, 3 pole, 35 A, 750 V, (W x H x D) 104 x 163 x 86 mm, HDL36035

Order No.: 02P7229
EAN: 4099889279665
MPN:
HDL36035
HDL36035 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
1,073.1182 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1,073.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,073.1182 €

Compact circuit breaker, HDL36035, Schneider Electric

The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This PowerPact H, circuit breaker has a rated current of 35A and is a 3P breaker. This breaker has a breaking capacity of 14 kA@600VAC and has an thermal-magnetic trip technology. This breaker complies to UL, CE, IEC & CSA standards. Thermal current for this breaker has a magnetic tripping current of 850 A. Dimensions for this breaker are 6.4 in (H),2.74 in (W),4.36 in (D) and has an ambient temperature of 40 °C. This product comes with an 18 months warranty.

Technical specifications
Permanent current 35 A
Actuator toggle actuator
Degree of protection (IP) IP20
Depth 86 mm
Width 104 mm
Height 163 mm
Product type compact circuit breaker
Pin number 3 pole
Isolation voltage 750 V
Logistics
Country of origin US
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
