GS2V4 | Schneider Electric

Load-break switch, with fuse, rotary actuator, 4 pole, 1250 A, 1000 V, (W x H x D) 562 x 355 x 289 mm, mounting plate, GS2V4

Order No.: 02P6613
EAN: 4099889279627
MPN:
GS2V4
Series: TeSys GS
GS2V4 Schneider Electric Circuit Breakers

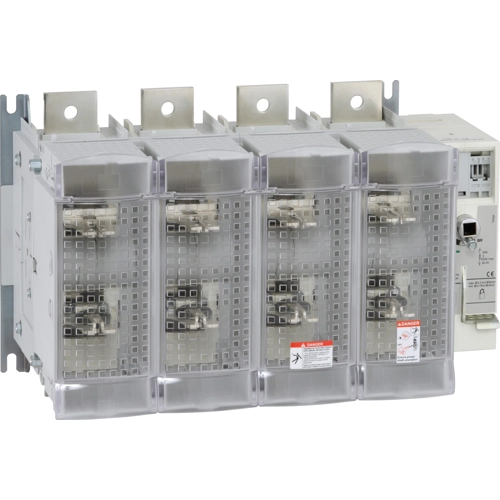

Image may differ
Unit Price (€ / pc.)
3,724.2835 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3,724.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3,724.2835 €

Switch disconnector, GS2V4, Schneider Electric

TeSys GS fuse switch-disconnector, 4 poles (4P), 1250 A/1000 V, to be used with DIN blade fuse links size 4 up to 1250 A, for motor applications up to 560kW@400V AC-23. To be equipped with a direct operating handle GS1 AH104 (to be ordered separately), or with an external operating handle GS2AH that can be front side, left-hand side, or right-hand side mounting (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1 AM (front mounting), GS1 AN (side mounting), GS1 AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 4 blade fuse links without strickers DF2LA, DF2LN and with strickers DF4LA, DF4LN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Permanent current 1250 A
Actuator rotary actuator
Degree of protection (IP) IP20
Depth 289 mm
Assembly mounting plate
Width 562 mm
Height 355 mm
Product type load-break switch
Pin number 4 pole
Version with fuse
Isolation voltage 1000 V
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
