GS2SG4 | Schneider Electric

Load-break switch, with fuse, rotary actuator, 4 pole, 630 A, 1000 V, (W x H x D) 458 x 300 x 250 mm, mounting plate, GS2SG4

Order No.: 02P6607
EAN: 4099889279580
MPN:
GS2SG4
Series: TeSys GS
GS2SG4 Schneider Electric Circuit Breakers

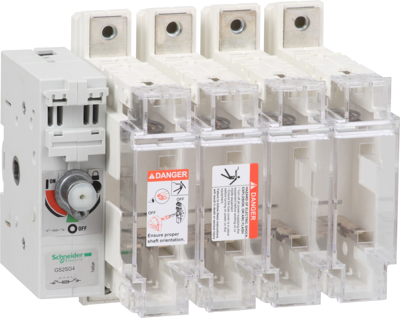

Image may differ
Unit Price (€ / pc.)
1,784.881 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,784.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,784.881 €

Switch disconnector, GS2SG4, Schneider Electric

TeSys GS fuse switch-disconnector, 4 poles (4P), 630 A/1000 V, to be used with DIN blade fuse links size 3 up to 630 A, for motor applications up to 355kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1 AM (front mounting), GS1 AN (side mounting), GS1 AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 3 blade fuse links without strickers DF2KA, DF2KN and with strickers DF4KA, DF4KN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Permanent current 630 A
Actuator rotary actuator
Degree of protection (IP) IP20
Depth 250 mm
Assembly mounting plate
Width 458 mm
Height 300 mm
Product type load-break switch
Pin number 4 pole
Version with fuse
Isolation voltage 1000 V
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
