GS2SB3 | Schneider Electric
Load-break switch, rotary actuator, 3 pole, 630 A, 1000 V, (W x H x D) 364 x 300 x 250 mm, mounting plate, GS2SB3
Unit Price (€ / pc.)
1,738.3758 € *
Standard delivery time from the manufacturer is: 6 Weeks

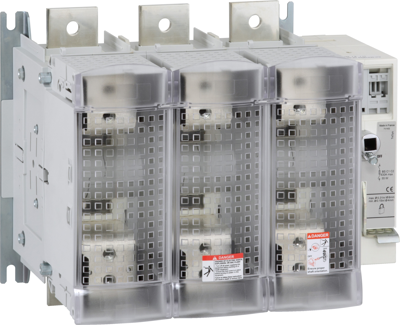

Switch disconnector, GS2SB3, Schneider Electric
TeSys GS fuse switch-disconnector, 3 poles (3P), 630 A/1000 V, to be used with type BS fuse links size C1-C2 up to 630 A, for motor applications up to 355kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1 AP73 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1 AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | load-break switch | |
| Isolation voltage | 1000 V | |
| Depth | 250 mm | |
| Height | 300 mm | |
| Permanent current | 630 A | |
| Degree of protection (IP) | IP20 | |
| Actuator | rotary actuator | |
| Assembly | mounting plate | |
| Width | 364 mm | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
