GS2LG3 | Schneider Electric

Load-break switch, rotary actuator, 3 pole, 160 A, 750 V, (W x H x D) 190 x 162 x 136.5 mm, mounting plate, GS2LG3

Order No.: 02P6574
EAN: 4099889279290
MPN:
GS2LG3
Series: TeSys GS
GS2LG3 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
356.3455 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
356.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
356.3455 €

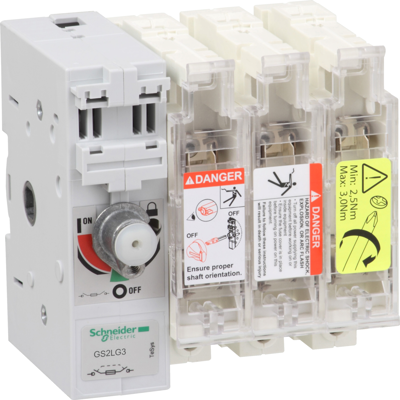

Switch disconnector, GS2LG3, Schneider Electric

TeSys GS fuse switch-disconnector, 3 poles (3P), 160 A/750 V, to be used with DIN blade fuse links size 0 up to 160 A, for motor applications up to 80kW@400V AC-23. To be equipped with an external left-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1 AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1 AM (front mounting), GS1 AN (side mounting), GS1 AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 0 blade fuse links without strickers DF2GA, DF2GN and with strickers DF4GA, DF4GN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Permanent current 160 A
Actuator rotary actuator
Degree of protection (IP) IP20
Depth 136.5 mm
Assembly mounting plate
Width 190 mm
Height 162 mm
Pin number 3 pole
Isolation voltage 750 V
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
