GS2GB3 | Schneider Electric

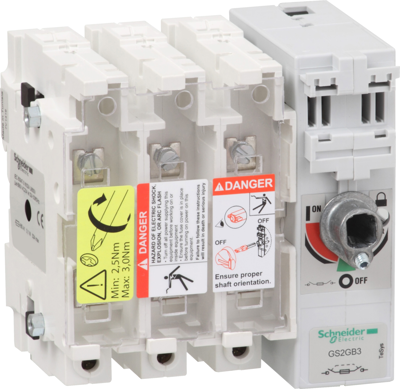

Load-break switch, rotary actuator, 3 pole, 63 A, 750 V, (W x H x D) 136 x 118 x 116.5 mm, mounting plate, GS2GB3
Unit Price (€ / pc.)
233.3471 € *
Standard delivery time from the manufacturer is: 1 Week
Switch disconnector, GS2GB3, Schneider Electric
TeSys GS fuse switch-disconnector, 3 poles (3P), 63 A/750 V, to be used with type BS fuse links size A2-A3 up to 63 A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1 AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | load-break switch | |
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Assembly | mounting plate | |
| Width | 136 mm | |
| Height | 118 mm | |
| Depth | 116.5 mm | |
| Permanent current | 63 A | |
| Isolation voltage | 750 V | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
