GS2G4 | Schneider Electric

Load-break switch, with fuse, rotary actuator, 4 pole, 63 A, 750 V, (W x H x D) 168 x 118 x 116.5 mm, mounting plate, GS2G4

Order No.: 02P6547
EAN: 4099889279061
MPN:
GS2G4
Series: TeSys GS
GS2G4 Schneider Electric Circuit Breakers

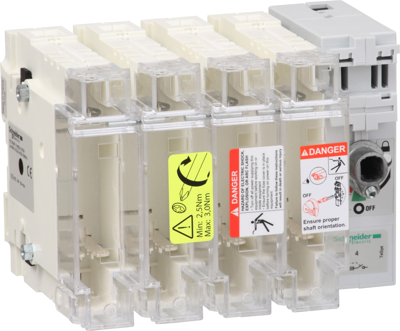

Image may differ
Unit Price (€ / pc.)
243.6168 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
243.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
243.6168 €

Switch disconnector, GS2G4, Schneider Electric

TeSys GS fuse switch-disconnector, 4 poles (4P), 63 A/750 V, to be used with DIN blade fuse links size 000 up to 63 A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules, front mounting GS1 AM (early-break and position signaling), side mounting GS1 AN (position signaling) can complete the assembly (to be ordered separately). Type aM and gG size 000 blade fuse links without strickers DF2FGA, DF2FGN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications
Permanent current 63 A
Actuator rotary actuator
Degree of protection (IP) IP20
Depth 116.5 mm
Assembly mounting plate
Width 168 mm
Height 118 mm
Product type load-break switch
Pin number 4 pole
Version with fuse
Isolation voltage 750 V
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
