GS2DB4 | Schneider Electric
Load-break switch, with fuse, rotary actuator, 4 pole, 32 A, 750 V, (W x H x D) 148 x 118 x 87 mm, mounting plate, GS2DB4
Unit Price (€ / pc.)
190.7808 € *
Standard delivery time from the manufacturer is: 1 Week

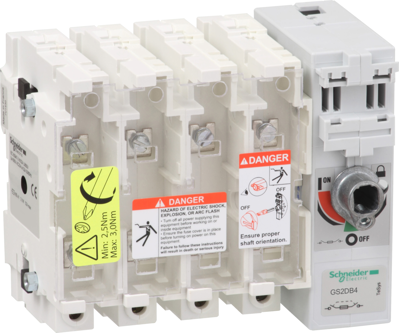

Switch disconnector, GS2DB4, Schneider Electric
TeSys GS fuse switch-disconnector, 4 poles (4P), 32 A/800V, to be used with type BS fuse links size A1 up to 32 A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 4P terminal shrouds, high short circuit current rating 80kA@400V. Add-on auxiliary contact modules front mounting GS1 AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | load-break switch | |
| Version | with fuse | |
| Pin number | 4 pole | |
| Actuator | rotary actuator | |
| Assembly | mounting plate | |
| Width | 148 mm | |
| Height | 118 mm | |
| Depth | 87 mm | |
| Permanent current | 32 A | |
| Isolation voltage | 750 V | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
