GB2CD06 | Schneider Electric
Circuit breaker, toggle actuator, 1 pole, 1 A, (W x H x D) 15 x 74 x 67 mm, mounting plate, GB2CD06
Unit Price (€ / pc.)
34.9979 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
35.00 € *
Price list
Quantity
Price per unit*
1 pcs.
34.9979 €
2 pcs.
33.4866 €
3 pcs.
31.6421 €
6 pcs.
29.9999 €
*incl. VAT plus shipping costs
Subject to prior sale

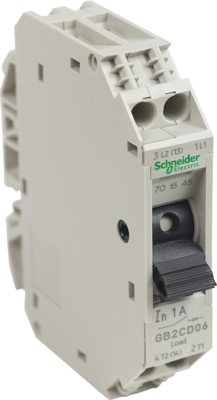

Circuit breaker, GB2CD06, Schneider Electric
TeSys GB circuit breaker, 2 poles (1P+N), 1 A/250 V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 14A (13 In) and breaking capacity Icu 50 kA@240V. It can also be used for protection of DC loads up to 1 A/48V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30 mm wide), mounting on 35 mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA), Green Premium product (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator | toggle actuator | |
| Assembly | mounting plate | |
| Permanent current | 1 A | |
| Pin number | 1 pole | |
| Depth | 67 mm | |
| Width | 15 mm | |
| Height | 74 mm | |
| Product type | circuit breaker | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
