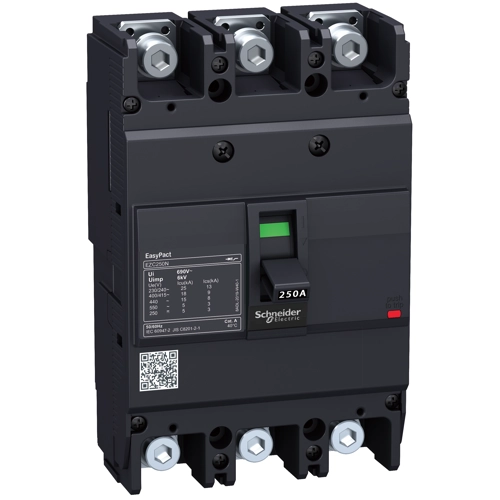

EZC250H3160 | Schneider Electric

Circuit breaker, toggle actuator, 3 pole, 250 A, 690 V, (W x H x D) 105 x 165 x 60 mm, fixed mounting, EZC250H3160

Order No.: 02P5861
EAN: 4099889278637
MPN:
EZC250H3160
Series: EasyPact CVS
EZC250H3160 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
507.9991 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
508.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
507.9991 €

Circuit breaker, EZC250H3160, Schneider Electric

This product can work below rated operational voltage(Ue) 550 VAC at 50/60 Hz or 250 VDC network. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure,and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle,and IP54 for extended rotary handle.

Technical specifications
Permanent current 250 A
Actuator toggle actuator
Degree of protection (IP) IP20
Depth 60 mm
Assembly fixed mounting
Width 105 mm
Height 165 mm
Product type circuit breaker
Pin number 3 pole
Isolation voltage 690 V
Logistics
Country of origin CN
Customs tariff number 85362090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
