EZC100H3025 | Schneider Electric

Circuit breaker, toggle actuator, 3 pole, 25 A, 690 V, (W x H x D) 75 x 130 x 60 mm, fixed mounting, EZC100H3025

Order No.: 02P5820
EAN: 4099889278248
MPN:
EZC100H3025
Series: EasyPact CVS
EZC100H3025 Schneider Electric Circuit Breakers

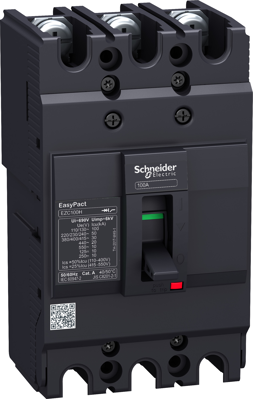

Image may differ
Unit Price (€ / pc.)
177.0125 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
177.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
177.0125 €

Circuit breaker, EZC100H3025, Schneider Electric

EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 30 kA rms at 415 VAC 50/60 Hz. The operational voltage is 550 VAC 50/60 Hz or 250 VDC. The rating of the thermal-magnetic trip unit is 25A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.

Technical specifications
Permanent current 25 A
Actuator toggle actuator
Degree of protection (IP) IP20
Depth 60 mm
Assembly fixed mounting
Width 75 mm
Height 130 mm
Product type circuit breaker
Pin number 3 pole
Isolation voltage 690 V
Logistics
Country of origin TH
Customs tariff number 85362010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
