A9S65191 | Schneider Electric
Load-break switch, toggle actuator, 1 pole, 100 A, 250 V, (W x H x D) 18 x 85 x 73 mm, fixed mounting, A9S65191
Unit Price (€ / pc.)
43.4469 € *
Available: 0 pcs.
Leadtime: On Request **

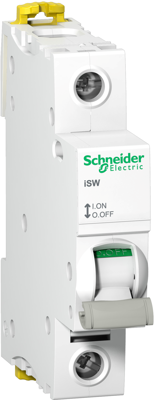

Switch disconnector, A9S65191, Schneider Electric
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 100A, and operating voltage is 240VAC. Electrical endurance goes up to 10000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
Technical specifications
| Actuator | toggle actuator | |
| Width | 18 mm | |
| Permanent current | 100 A | |
| Height | 85 mm | |
| Isolation voltage | 250 V | |
| Assembly | fixed mounting | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP20 | |
| Depth | 73 mm |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
