A9C66310 | Schneider Electric

Circuit breaker, toggle actuator, 3 pole, 10 A, 500 V, (W x H x D) 99 x 84 x 77 mm, fixed mounting, A9C66310

Order No.: 01P6989
EAN: 4099889275896
MPN:
A9C66310
Series: Acti 9

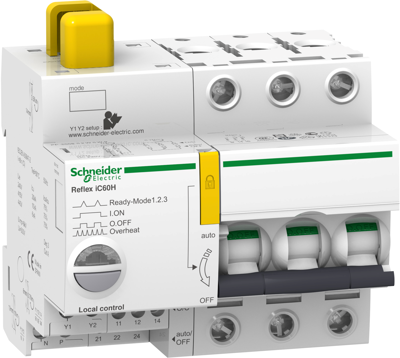

A9C66310 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
290.8598 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
290.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
290.8598 €

Remotely switchable circuit breaker, A9C66310, Schneider Electric

Acti 9 Reflex iC60H remote-controlled miniature circuit-breaker, breaking capacity 30 kA at 220-240V AC (EN/IEC 60947-2), 15 kA at 380-415V AC (EN/IEC 60947-2). 3-pole, rated current 10 A, D characteristic, Ti24 interface, insulation voltage (Ui) 500 V. Remote switching by means of pulse and/or continuous signal according to one of the three adjustable operating modes by the user. Protection of circuits against short-circuit currents and overload currents.

Green indicator on the switch guarantees that the contacts are open and safe working on the outgoing side is ensured. Snap action guarantees low-wear switching of the contacts.

Technical specifications
Permanent current 10 A
Actuator toggle actuator
Degree of protection (IP) IP20
Depth 77 mm
Assembly fixed mounting
Width 99 mm
Height 84 mm
Pin number 3 pole
Isolation voltage 500 V
Logistics
Country of origin ES
Customs tariff number 85362010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
