48746 | Schneider Electric

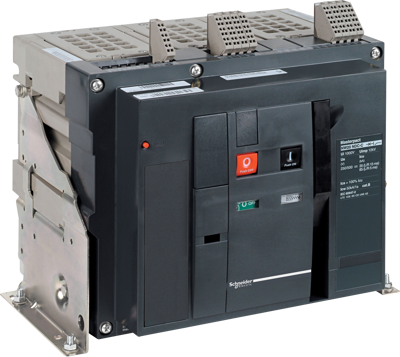

Disconnect switch, push actuator, 3 pole, 1000 A, 1.25 kV, (W x H x D) 442 x 352 x 297 mm, drawout, 48746
Unit Price (€ / pc.)
5,535.2374 € *
Standard delivery time from the manufacturer is: 2 Weeks
Basic switch, 48746, Schneider Electric
Open circuit-breaker MasterPact NW, 1000 A, HA10 Icu is 105 kA at 1150 V, 3-pole, basic switch, withdrawable technology without Micrologic.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 442 mm | |
| Depth | 297 mm | |
| Permanent current | 1000 A | |
| Actuator | push actuator | |
| Pin number | 3 pole | |
| Product type | disconnect switch | |
| Degree of protection (IP) | IP30 | |
| Isolation voltage | 1.25 kV | |
| Assembly | drawout | |
| Height | 352 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead, lead monoxide (lead oxide) |
