48241 | Schneider Electric

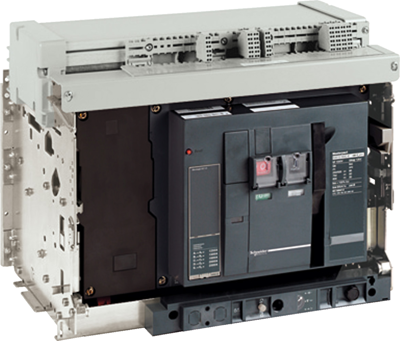

Disconnect switch, push actuator, 4 pole, 800 A, 1000 V, (W x H x D) 537 x 352 x 297 mm, drawout, 48241
Unit Price (€ / pc.)
4,966.1556 € *
Standard delivery time from the manufacturer is: 1 Week
Basic switch, 48241, Schneider Electric
Open circuit-breaker MasterPact NW, 800 A, NA Icm is 88 kA at 690 V, 4-pole basic switch, withdrawable technology without Micrologic.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 297 mm | |
| Isolation voltage | 1000 V | |
| Product type | disconnect switch | |
| Height | 352 mm | |
| Permanent current | 800 A | |
| Assembly | drawout | |
| Width | 537 mm | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP30 | |
| Actuator | push actuator |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| RoHS conform | Yes |
| SVHC free | No |
