33453 | Schneider Electric
Load-break switch, toggle actuator, 4 pole, 800 A, 1000 V, (W x H x D) 280 x 327 x 147 mm, fixed mounting, 33453
Unit Price (€ / pc.)
4,293.6866 € *
Standard delivery time from the manufacturer is: 1 Week
Switch disconnector, 33453, Schneider Electric

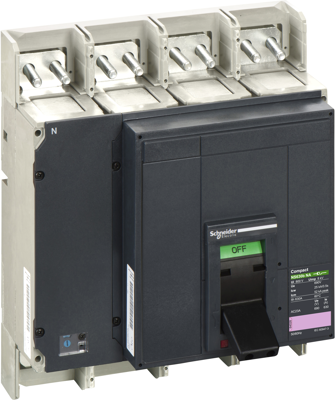

This Compact NS800NA is a 4 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a withdrawable version and is electrically operated by a motor mechanism. The operational current is 800 A (AC23A) and the operational voltage is 690V 50/60 Hz. This basic version does not include the chassis and the power connections. The dimensions are 327 mm (width), 280 mm (height) and 147 mm (depth). This device complies with IEC 60947-3 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 280 mm | |
| Depth | 147 mm | |
| Permanent current | 800 A | |
| Actuator | toggle actuator | |
| Pin number | 4 pole | |
| Product type | load-break switch | |
| Degree of protection (IP) | IP30 | |
| Isolation voltage | 1000 V | |
| Assembly | fixed mounting | |
| Height | 327 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 85362090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | lead, benzene-1,2,4-tricarboxylic acid-1,2-anhydride |
