33442 | Schneider Electric
Load-break switch, toggle actuator, 3 pole, 800 A, 1000 V, (W x H x D) 210 x 327 x 147 mm, fixed mounting, 33442
Unit Price (€ / pc.)
3,842.2244 € *
Standard delivery time from the manufacturer is: 1 Week
Switch disconnector, 33442, Schneider Electric

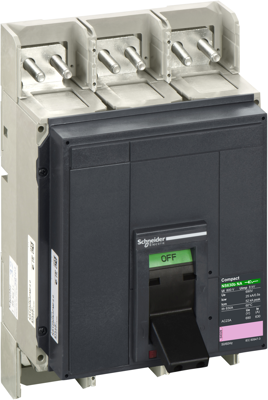

This Compact NS800NA is a 3 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version and is electrically operated by a motor mechanism. The operational current is 800 A (AC23A) and the operational voltage is 690V 50/60 Hz. This basic version does not include the front and rear power connections. The dimensions are 327 mm (width), 210 mm (height) and 147 mm (depth). This device complies with IEC 60947-3 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 1000 V | |
| Depth | 147 mm | |
| Height | 327 mm | |
| Assembly | fixed mounting | |
| Width | 210 mm | |
| Permanent current | 800 A | |
| Degree of protection (IP) | IP30 | |
| Actuator | toggle actuator | |
| Product type | load-break switch | |
| Pin number | 3 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362090 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| Substance description | lead, benzene-1,2,4-tricarboxylic acid-1,2-anhydride |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
