33441 | Schneider Electric
Load-break switch, toggle actuator, 4 pole, 630 A, 1000 V, (W x H x D) 280 x 327 x 147 mm, fixed mounting, 33441
Unit Price (€ / pc.)
4,143.4491 € *
Standard delivery time from the manufacturer is: 1 Week

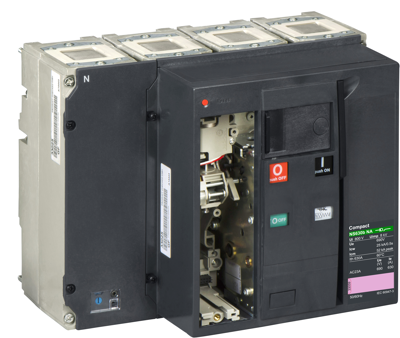

Switch disconnector, 33441, Schneider Electric
This Compact NS630bNA is a 4 poles switch disconnector. It is used to control and isolate electrical distribution circuits. This device is a fixed version and is electrically operated by a motor mechanism. The operational current is 630 A (AC23A) and the operational voltage is 690V 50/60 Hz. This basic version does not include the front and rear power connections. The dimensions are 327 mm (width), 280 mm (height) and 147 mm (depth). This device complies with IEC 60947-3 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Actuator | toggle actuator | |
| Height | 327 mm | |
| Degree of protection (IP) | IP30 | |
| Assembly | fixed mounting | |
| Depth | 147 mm | |
| Width | 280 mm | |
| Permanent current | 630 A | |
| Isolation voltage | 1000 V | |
| Product type | load-break switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362090 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | lead, benzene-1,2,4-tricarboxylic acid-1,2-anhydride |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
