31367 | Schneider Electric

Disconnect switch, with visible interruption, rotary actuator, 4 pole, 2000 A, 1000 V, (W x H x D) 347.5 x 440 x 227.5 mm, fixed mounting, 31367

Order No.: 01P4020
EAN: 3303430313670
MPN:
31367
Series: Compact INS/INV
31367 Schneider Electric Circuit Breakers
Image may differ
Unit Price (€ / pc.)
4,002.8744 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4,002.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4,002.8744 €

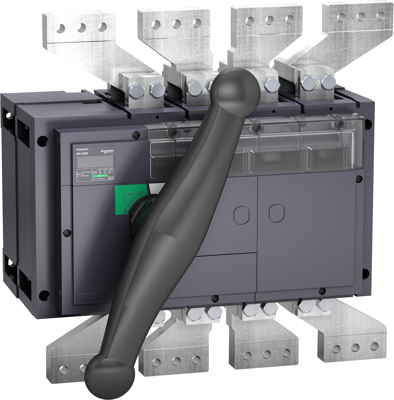

Non-automatic switch disconnector, 31367, Schneider Electric

This Compact INV2000 is a 4 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 2000 A at 415 VAC in categories AC21B and AC22B. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV2000 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Filter Property Value
Pin number 4 pole
Actuator rotary actuator
Height 440 mm
Degree of protection (IP) IP40
Version with visible interruption
Assembly fixed mounting
Depth 227.5 mm
Width 347.5 mm
Permanent current 2000 A
Isolation voltage 1000 V
Product type disconnect switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
