31360 | Schneider Electric
Disconnect switch, with visible interruption, rotary actuator, 3 pole, 1000 A, 1000 V, (W x H x D) 340 x 300 x 146.5 mm, fixed mounting, 31360
Unit Price (€ / pc.)
1,857.1616 € *
Standard delivery time from the manufacturer is: 1 Week
Non-automatic switch disconnector, 31360, Schneider Electric

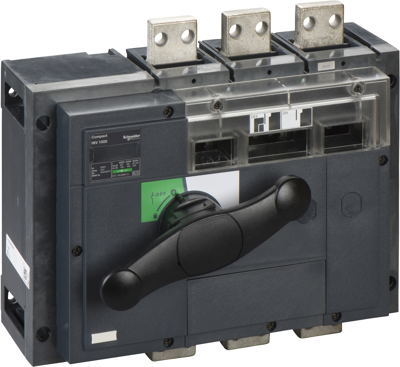

This Compact INV1000 is a 3 poles non-automatic switch-disconnector with visible break and black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1000 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. Compact INV range allows the visible break of the main contacts through a transparent cover. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INV1000 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary actuator | |
| Height | 300 mm | |
| Degree of protection (IP) | IP40 | |
| Version | with visible interruption | |
| Assembly | fixed mounting | |
| Depth | 146.5 mm | |
| Width | 340 mm | |
| Permanent current | 1000 A | |
| Isolation voltage | 1000 V | |
| Product type | disconnect switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
