31351 | Schneider Electric
Disconnect switch, rotary actuator, 4 pole, 1600 A, 1000 V, (W x H x D) 410 x 300 x 146.5 mm, fixed mounting, 31351
Unit Price (€ / pc.)
2,543.6369 € *
Standard delivery time from the manufacturer is: 2 Weeks
Non-automatic switch-disconnector, 31351, Schneider Electric

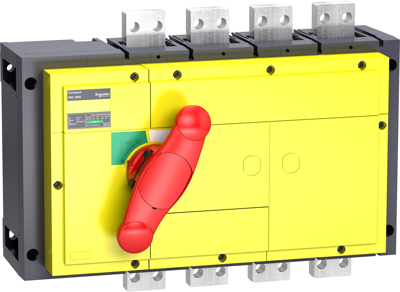

This Compact INS1600 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1600 A at 415 VAC in categories AC21B and AC22B, 1250 A at 415 VAC in category and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1600 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Actuator | rotary actuator | |
| Height | 300 mm | |
| Degree of protection (IP) | IP40 | |
| Assembly | fixed mounting | |
| Depth | 146.5 mm | |
| Width | 410 mm | |
| Permanent current | 1600 A | |
| Isolation voltage | 1000 V | |
| Product type | disconnect switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
