31349 | Schneider Electric
Disconnect switch, rotary actuator, 4 pole, 1250 A, 1000 V, (W x H x D) 410 x 300 x 146.5 mm, fixed mounting, 31349
Unit Price (€ / pc.)
2,292.2494 € *
Standard delivery time from the manufacturer is: 2 Weeks
Non-automatic switch-disconnector, 31349, Schneider Electric

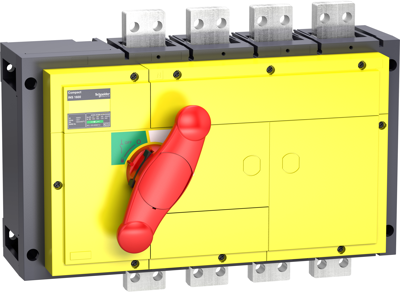

This Compact INS1250 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 1250 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS1250 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 300 mm | |
| Pin number | 4 pole | |
| Permanent current | 1250 A | |
| Width | 410 mm | |
| Assembly | fixed mounting | |
| Isolation voltage | 1000 V | |
| Degree of protection (IP) | IP40 | |
| Actuator | rotary actuator | |
| Depth | 146.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
