Disconnect switch, rotary actuator, 3 pole, 800 A, 1000 V, (W x H x D) 340 x 300 x 146.5 mm, fixed mounting, 31344
Unit Price (€ / pc.)
1,445.1122 € *
Standard delivery time from the manufacturer is: 3 Weeks
Non-automatic switch-disconnector, 31344, Schneider Electric

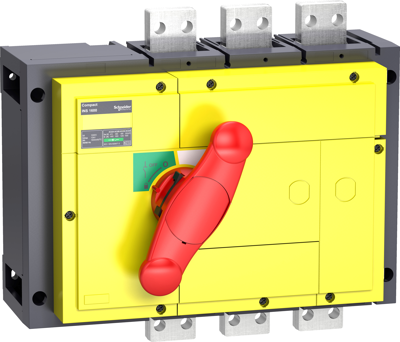

This Compact INS800 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 800 A at 415 VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS800 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Permanent current | 800 A | |
| Actuator | rotary actuator | |
| Degree of protection (IP) | IP40 | |
| Depth | 146.5 mm | |
| Assembly | fixed mounting | |
| Width | 340 mm | |
| Height | 300 mm | |
| Pin number | 3 pole | |
| Isolation voltage | 1000 V |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
