31131 | Schneider Electric

Load-break switch, rotary actuator, 4 pole, 400 A, 750 V, (W x H x D) 185 x 205 x 130 mm, fixed mounting, 31131

Order No.: 01P3918
EAN: 3303430311317
MPN:
31131
Series: Compact INS/INV
31131 Schneider Electric Circuit Breakers

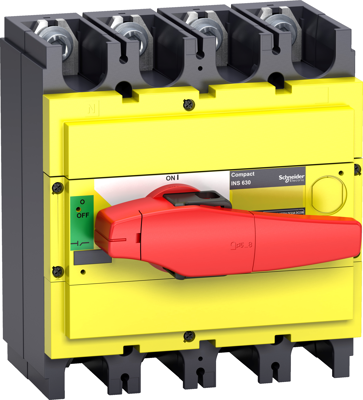

Image may differ
Unit Price (€ / pc.)
496.8131 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
496.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
496.8131 €

Switch disconnector, 31131, Schneider Electric

This Compact INS400 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 400 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS400 is a class II insulation level front-face device as per IEC 60664 standard.

Technical specifications
Filter Property Value
Depth 130 mm
Permanent current 400 A
Width 185 mm
Actuator rotary actuator
Degree of protection (IP) IP40
Pin number 4 pole
Assembly fixed mounting
Height 205 mm
Isolation voltage 750 V
Product type load-break switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin PL
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
