31126 | Schneider Electric
Load-break switch, rotary actuator, 3 pole, 250 A, 750 V, (W x H x D) 140 x 136 x 96 mm, fixed mounting, 31126
Unit Price (€ / pc.)
285.6119 € *
Available in 3 Days: 2 pcs. - if ordered today
Switch disconnector, 31126, Schneider Electric

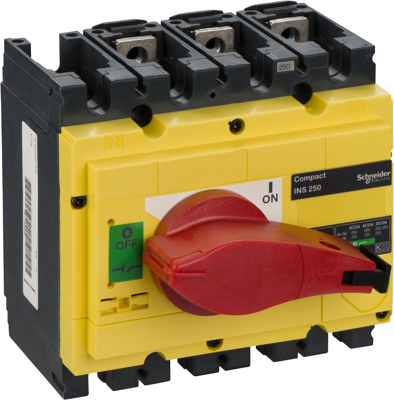

This Compact INS250 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 96 mm | |
| Isolation voltage | 750 V | |
| Assembly | fixed mounting | |
| Actuator | rotary actuator | |
| Pin number | 3 pole | |
| Permanent current | 250 A | |
| Width | 140 mm | |
| Height | 136 mm | |
| Degree of protection (IP) | IP40 | |
| Product type | load-break switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
