28927 | Schneider Electric
Load-break switch, rotary actuator, 4 pole, 125 A, 750 V, (W x H x D) 135 x 100 x 62.5 mm, fixed mounting, 28927
Unit Price (€ / pc.)
166.60 € *
Standard delivery time from the manufacturer is: 1 Week
Switch disconnector, 28927, Schneider Electric

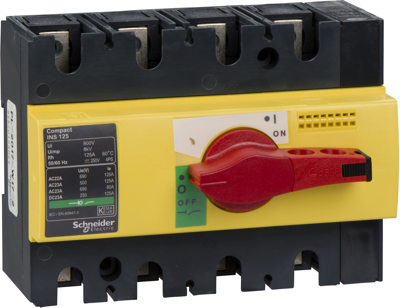

This Compact INS125 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 135 mm | |
| Product type | load-break switch | |
| Degree of protection (IP) | IP40 | |
| Pin number | 4 pole | |
| Height | 100 mm | |
| Depth | 62.5 mm | |
| Assembly | fixed mounting | |
| Isolation voltage | 750 V | |
| Actuator | rotary actuator | |
| Permanent current | 125 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
