28917 | Schneider Electric
Load-break switch, rotary actuator, 4 pole, 40 A, 690 V, (W x H x D) 90 x 85 x 62.5 mm, fixed mounting, 28917
Unit Price (€ / pc.)
95.20 € *
Available in 3 Days: 28 pcs. - if ordered today

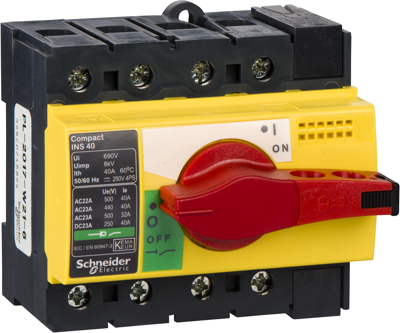

Switch disconnector, 28917, Schneider Electric
This Compact INS40 is a 4 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 500 VAC 50/60 Hz or 250 VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 690 V | |
| Depth | 62.5 mm | |
| Height | 85 mm | |
| Assembly | fixed mounting | |
| Width | 90 mm | |
| Permanent current | 40 A | |
| Degree of protection (IP) | IP40 | |
| Actuator | rotary actuator | |
| Product type | load-break switch | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
