28911 | Schneider Electric
Load-break switch, rotary actuator, 4 pole, 125 A, 750 V, (W x H x D) 135 x 100 x 62.5 mm, fixed mounting, 28911
Unit Price (€ / pc.)
166.60 € *
Available in 3 Days: 271 pcs. - if ordered today
Switch disconnector, 28911, Schneider Electric

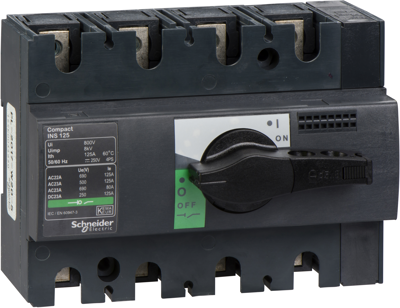

This Compact INS125 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125 A at 415 VAC in categories AC22A and AC23A. The rated voltage is 690 VAC 50/60 Hz or 250 VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 750 V | |
| Depth | 62.5 mm | |
| Height | 100 mm | |
| Assembly | fixed mounting | |
| Width | 135 mm | |
| Permanent current | 125 A | |
| Degree of protection (IP) | IP40 | |
| Actuator | rotary actuator | |
| Product type | load-break switch | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
