PKY32M724 | Schneider Electric

CEE jack, 4 pole, 32 A/200-250 V, blue, 9 h, IP67, PKY32M724

Order No.: 04P5529
EAN: 4099889883145
MPN:
PKY32M724
Series: PratiKa

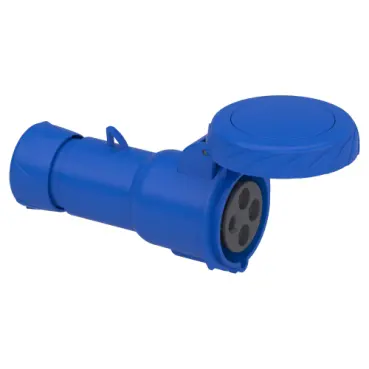

PKY32M724 Schneider Electric CEE Connectors Image 1

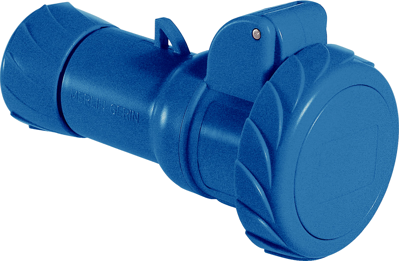

PKY32M724 Schneider Electric CEE Connectors Image 2
Image may differ
Unit Price (€ / pc.)
71.8879 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
71.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
71.8879 €

PratiKa wander socket - straight, PKY32M724, Schneider Electric

This Pratika industrial wander socket with fast connection connection is straight. It has 3P+E poles, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 99 mm x (H) 99 mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A are 2.5 mm² to 10 mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.

Technical specifications
Pin number 4 pole
Cable cross-section 2.5-10 mm²
Connection IDC connection
Degree of protection (IP) IP67
Version jack
Nominal power 32 A/200-250 V
Colour blue
Frequency range 50 to 60 Hz
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
SVHC free No
Substance description Lead
